OS2 12 Cores Fiber Optic Breakout Cable SC APC To SC APC LSZH Yellow Jacket
Takfly‘s Breakout Cable Patch Cords are installation cables that are suitable for laying in buildings, primarily in cable conduits and cable trays. Can be used as a building backbone or horizontal distribution, and they are operating in an uncontrolled or harsh environment.
Fiber Optic Patchcords are manufactured and tested in compliance with GR326 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high-speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.
Takfly could be your OEM factory in China.
Fiber Optic Patchcord Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANS)
- Data processing networks
- Test equipment
- Wide area networks(WANS)
Fiber Optic Patchcord Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard:Telcordia GR-326-CORE
Fiber Optic Patchcord Specifications
| End face type | UPC and APC |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter | 12.5mm(Fiber optic sub unit 2.0mm) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N 2.0/3.0mm cable>70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC/LSZH or Customized |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |

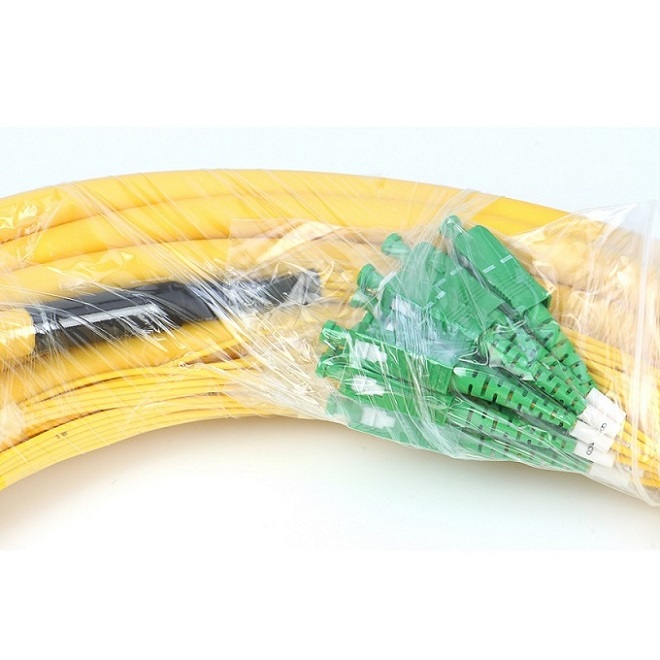

Fiber Optic Patchcord Picture
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:
- With more than 24 years manufacturing experience in Fiber optic products;
- More than 450 assembly workers with 3 years experienced;
- More than 10 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
Price: If your QTY is big, the price could be negotiated.
I have been working in this field more than 10 years, I believe, I could give you very good service and professional answers!
If you’re interested in our products or have any doubt, why not send me inquiry at once?
