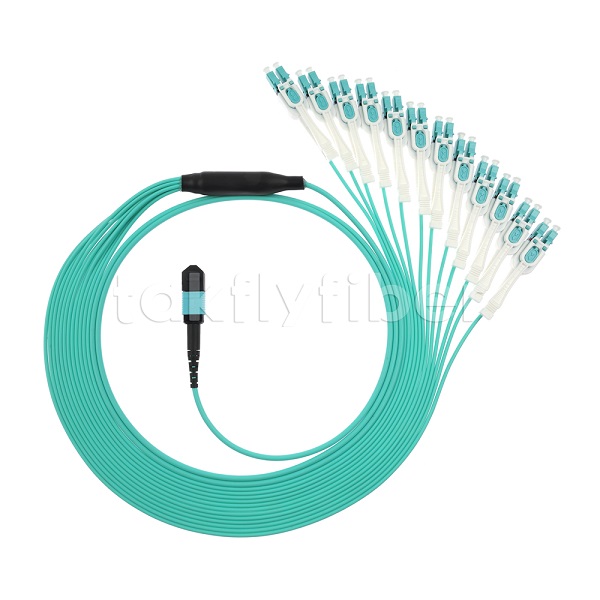

Data Center Fiber Optic Patchcord 24F MPO To 12 LC DX Uniboot OM3 3.0mm

TAKFLY COMMUNICATIONS CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Data Center Fiber Optic Patchcord 24F MPO To 12 LC DX Uniboot OM3 3.0mm

  • 1
  • 2
  • 3

Brand Name : Neutral/OEM/Takfly

Model Number : TK-PC-MPO-24F-OM3-12LCD

Certification : CE, ROHS, REACH, CPR, ISO9001, ISO14001

Place of Origin : Shenzhen, China

MOQ : 1

Price : US$12.99~US$19.99/PC

Payment Terms : Western Union, L/C, T/T,Paypal

Supply Ability : 1000PCS/Day

Delivery Time : 3-7working days

Packaging Details : PE bag

Cores : 24Cores

Fiber Type : Multimode , OM3

Length : 3m or customized

Cable Diameter : 3.0mm or Customized

Connector Type : MPO , LC

Insertion Loss : Standard: 0.6dB, Low Loss: 0.35dB

Return Loss : MM PC: 25dB

Cable Jacket : LSZH

Cable Color : Aqua

Application : Data Center, Telecom, Network

Product Name : Data Center Fiber Optic Patchcord 24F MPO To 12 LC DX Uniboot OM3

Contact Now

Data Center Fiber Optic Patchcord 24F MPO To 12 LC DX Uniboot OM3 , 3.0mm LSZH Aqua Jacket

MPO Fiber Optic Patchcord Description:

Takfly's MPO Serials patchcords can be MPO-MPO, MPO-LC, MPO-FC, MPO-SC, MPO-E2000, MPO-ST, MPO fan-out cable patch cord, MPO breakout cable patch cord, etc.
Takfly's MPO Patchcords' Quality guaranteed, 100% fully tested before shipping: End face test, polarity test, insertion loss and return loss test, 3D test,ect.
Takfly's MPO workshop is dust-free workshop with 6 MPO production lines, our MPO serials products are qualified with CE, ROHS, REACH, CPR EN50575, ISO9001 and ISO14001 standard.


MPO Fiber Optic Patchcord specifications:

Item LC / SC / ST / FC....... MPO / MTP
End face type PC / UPC / APC PC and APC
Fiber type SM(G652 / G655 / G657);MM(OM1-OM5)
Core number 2 / 4 / 6 / 8 / 12 / 24
Cable Diameter 0.9 / 2.0 / 3.0

Mini Round cable:Max4.5mm;

Ribbon cable:Max3.0*5.0mm

Insertion loss(dB) ≤ 0.3

Standard:≤0.35/0.7(Typical/Max)

Low Loss:≤0.2/0.35(Typical/Max)

Return loss(Min)

UPC SM:40dB

APC SM:60 dB

PC MM:25 dB

SM:

APC:60dB

MM:

PC:20dB

Test Wavelength(nm)

SM:1310/1550

MM:850/1300

Repeatability ≤ 0.1dB
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Operating Temperature -20℃~70℃
Storage Temperature -40℃~80℃
Outer Sheath Material PVC / LSZH
Bending radius(Static/Dynamic) 10D/20D
Length Customized


Applications

  • Data Center
  • Telecommunication Networks
  • Parallel optical interconnect between PC Cards and patch panels
  • Interconnection for O/E modules
  • Industrial & Military
  • Optical Switch interframe connections

Data Center Fiber Optic Patchcord 24F MPO To 12 LC DX Uniboot OM3 3.0mm

Data Center Fiber Optic Patchcord 24F MPO To 12 LC DX Uniboot OM3 3.0mm
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:


Established in 2000, with more than 400 workers, Takfly has 21 years manfufacturing experience in fiber optic products, mainly focus on : MPO/MTP Patch cord, Fiber Optic Patchcord, pigtail, adapter, attenuator, PLC Splitter, WDM/CWDM/DWDM, Termination Box, Fast Connector, Media Converter, POE Switch, SFP Transceiver and High Power products, ect.

  • We've certified with ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR and Anatel.
  • Main customer: Telefonica, Orange, Movistar, Vodafone, Singtel, Starhub, Corning, Amphenol, SENKO, ect.
  • Availability of R & D with more than 26 engineers, OEM, ODM customer designs are also welcomed .
  • High quality, attractive price and fast delivery(2-7days) ;

I have been working in this field more than 6 years, I believe, I could give you very good service and professional answers!
If youre interested in our products or have any doubt, why not send me inquiry at once?
