10Gbs OM4 24Fiber MTP to 12 Duplex Uniboot LC Breakout Cable LSZH 24C Fanout MPO OFNR Plenum Cable Patch Cord
General Details:
Takfly offers various MPO MTP equipped with trunk,breakout/Fanout,Harness patch cord,These cable assemblies are available with either 12fiber MPO MTP or 24 fiber MPO MTP,these polarity (A,B,C) and gender( Female and Male )depends on the network interface. We certaily use precision MT ferrules(Singlemode PC/APC,Multimode PC )together with metal guide pins and housing assemblies to ensure fiber alignment when mating.
MTP Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning Clearcurve fiber, it is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.
Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
Features:
1. Insertion loss type available in Standard, Elite / Low Loss
2. Fiber count available in 6, 8, 12, and 24
3. MTP/MPO connector type available in Male and Female
4. Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4, OM5)
5. Fanout length available in 0.5m, 1m, etc.
6. Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
7. Single-fiber connector type available in LC, SC with APC or UPC polishing type
8. Factory terminated & tested with guaranteed quality
9. High density to dramatically save space
Application:
- Data Center Infrastructure
- High Density Fiber Cabling System
- High integrated instrument and components
- High Precision Communication Device
Specification:
MPO/MTP Connector
| Optical Parameters |
| Insertion Loss (dB) | SM Standard | SM Elite | MM Standard | MM Elite |
| ≤0.7 | ≤0.35 | ≤0.5 | ≤0.35 |
| Return Loss (dB) | ≥60(APC) | ≥50(PC) | ≥30 |
| Durability (dB) | ≤0.2 500 times mating |
| Tensile Strength (kgf) | 10 |
| Working Temperature (ºC) | -40 ~ +85 |
| Measurement Wavelength (nm) | 1310/1550 | 850/1300 |
| Avg. Fiber Height Error (nm) | -300 | +300 |
| Central Concave (nm) | 30 |
LC Connector
| Fiber Mode | Single Mode | Multimode |
| Connector Polishing | PC | APC | PC |
| Insertion Loss(dB) | ≤0.3 |
| Return Loss (dB) | ≥50 | ≥60 | ≥35 |
| Repeatability (dB) | ≤0.2 1000 times mating |
| Working Temperature (ºC) | -40 ~ +85 |
| Measurement Wavelengths (nm) | 1310/1550 | 850/1300 |

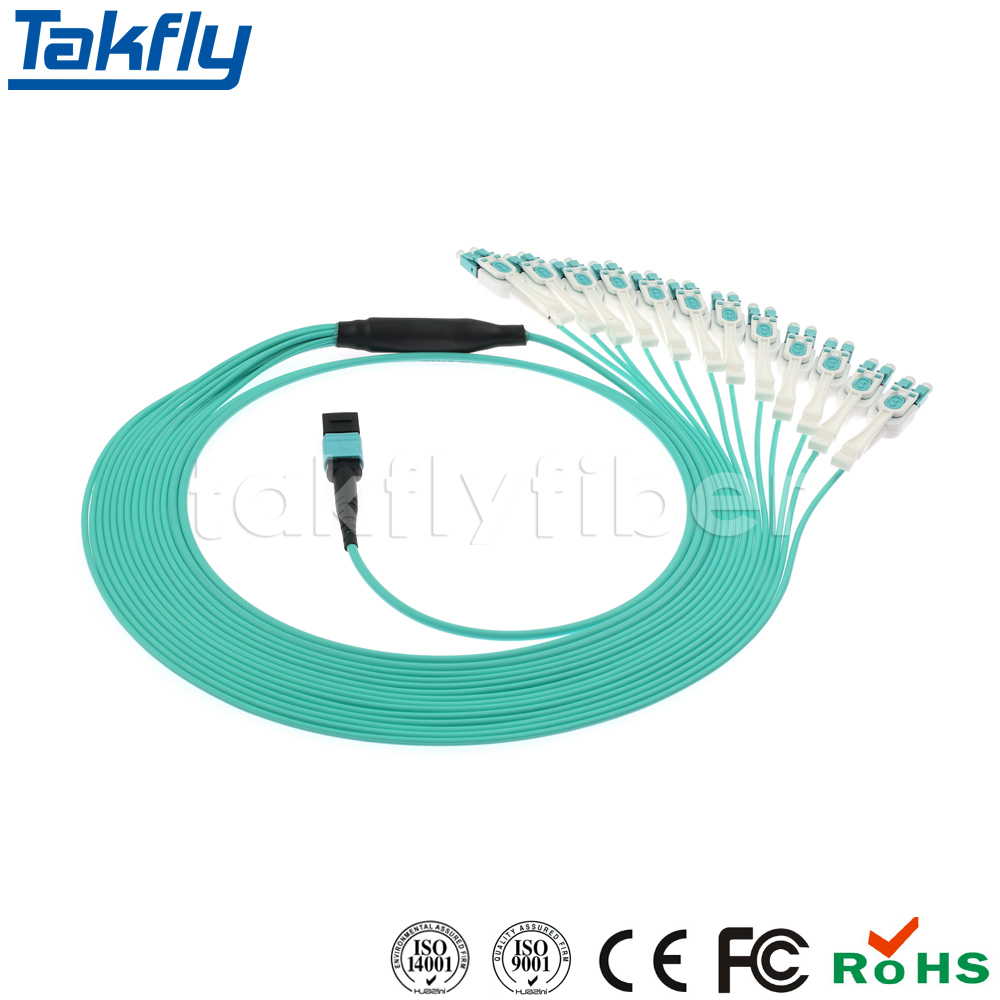

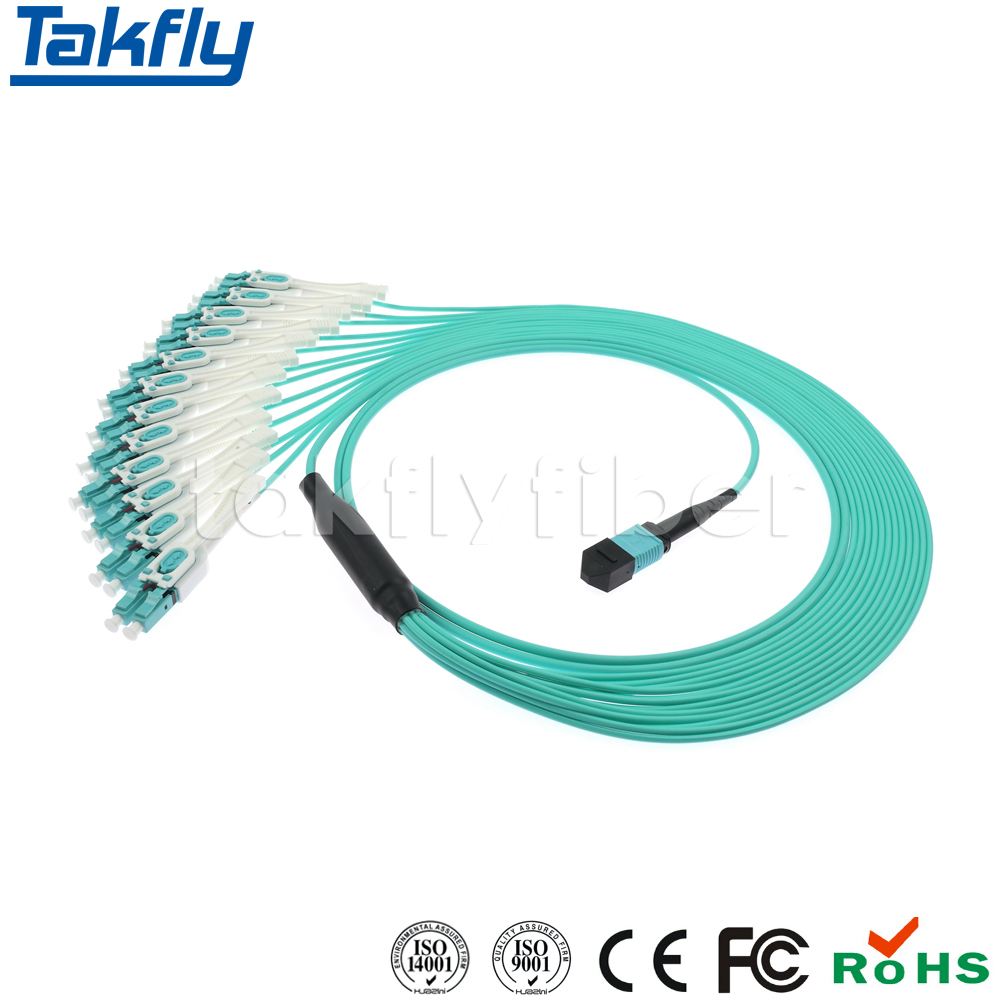

Product pictures:
