TK-HRS-1096A MPO MTP Cassette Management Panel For Data Center Height 1U

Brand Name : Takfly/OEM

Model Number : TK-HRS-1096A

Certification : ISO9001; ISO14001

Place of Origin : Shenzhen, China

MOQ : 1 pcs

Price : Can be negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 pieces per week

Delivery Time : 3-7days

Packaging Details : Carton box

Height : 1U

Test Wavelength (nm) : SM: 1310/1550 MM: 850/1300

Size(L*W*H) : 486*306*44.5mm

Repeatability : ≤ 0.1dB

Durability : ≤ 0.2dB

Interchangeability : ≤ 0.2dB

Contact Now

Takfly series rackmounted patch panel is designed to manage and house easy-plug MPO/MTP to LC fiber cassette modules, for connecting plug-and-play pre-terminated high density MPO/MTP Fiber cabling system.This solution contributes to greater network availability that especially suitable for SAN, LAN and Data Center applications. Each easy-plug MPO/MTP to LC

cassette is accommodated with a 12/24-fiber MPO/MTP based fiber assemblies, and pre-loaded with LC adapters in different fiber modes for your choices.

Application

For installing inside easy-plug cassette modules(19”)

 For installing inside Network cabinet

 CATV

 LAN

 WAN

 FTTX

Features

 Installed in 19 inch rack-mount and cabinet, application for cassette modules centralized management.

 1U high-density size capacity 96 fibers for LC interface

 2U high-density size capacity 192 fibers for LC interface

 3U high-density size capacity 288 fibers for LC interface

 Using the definitely Material of Metal.

 This system is modular in design,the higher density.Special designed ultra-small MTP/MPO modular box which save more space.

 Each box allocate 12pcs or 24pcs LC adapters and switch to MPO/MTP connections.

 Using unique tool-free installation design so that patching system can be fast assembled and installed

without any tools and complex operations.

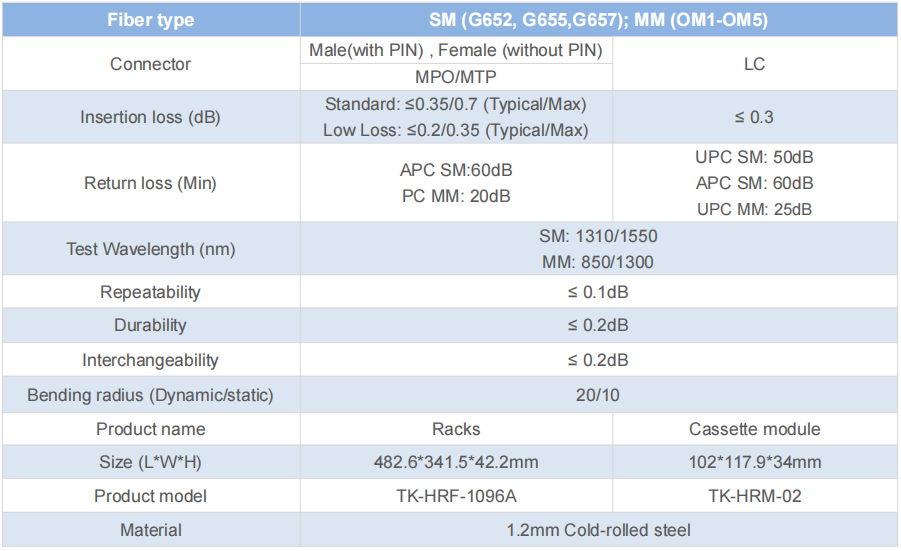

Parameter
TK-HRS-1096A MPO MTP Cassette Management Panel For Data Center Height 1U
TK-HRS-1096A MPO MTP Cassette Management Panel For Data Center Height 1U
