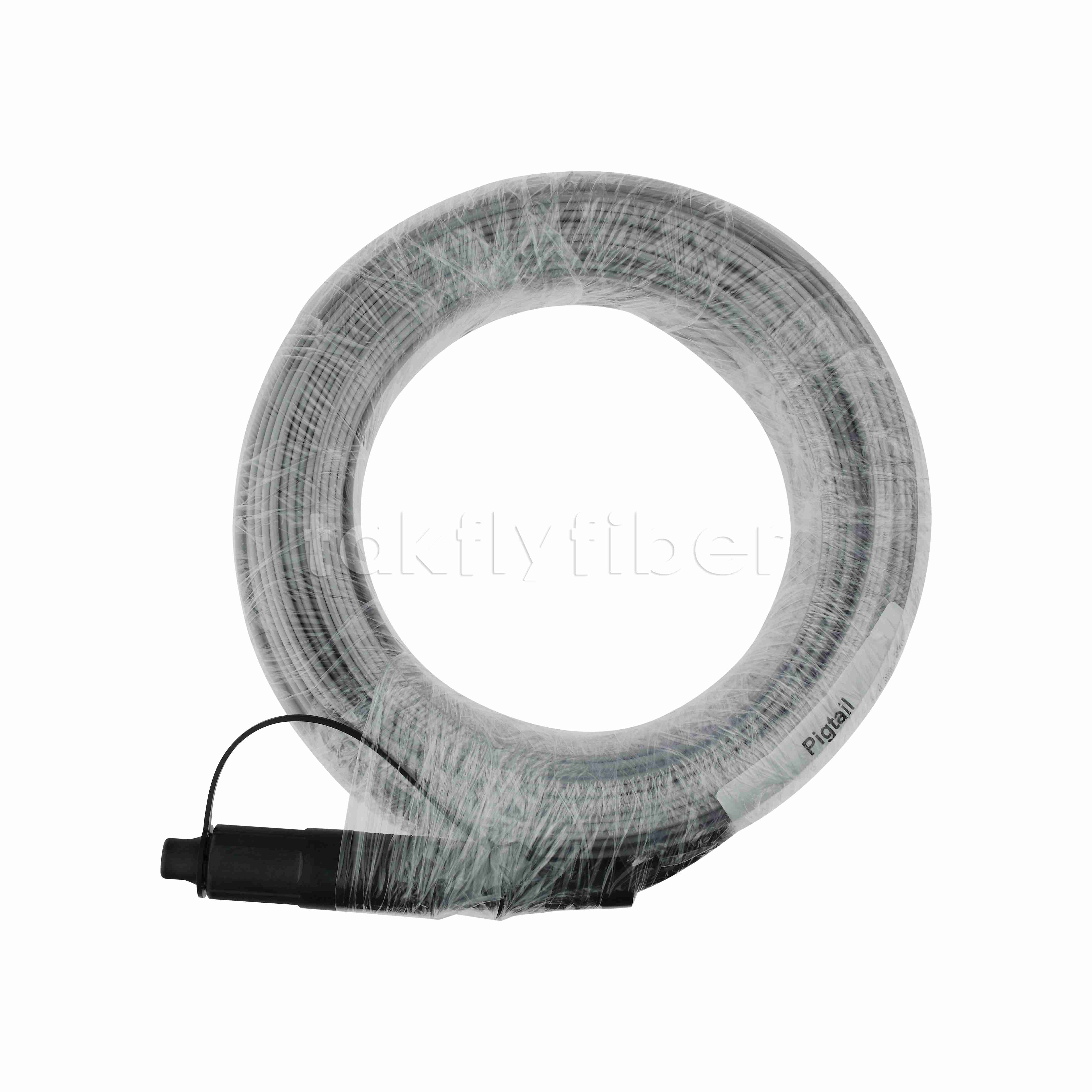

Optitap SC/APC 1Core FTTH Self-Support Drop Cable Fiber Optic Pigtail 40M SM G657A1 LSZH Low Friction Jacket

  • 1
  • 2

Brand Name : DF/OEM/Nuetral

Model Number : TK-PT-1F-OT-SA-A1-40M

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Place of Origin : China

MOQ : 50PCS

Price : US$0.01~9.99/PC

Payment Terms : Western Union, T/T, MoneyGram/Paypal

Supply Ability : 1000PCS/Day

Delivery Time : 5-9 working days depends on QTY

Packaging Details : Export Standard Packing

Product Name : Optitap SC/APC 1Core FTTH Self-Support Drop Cable Fiber Optic Pigtail 40M SM G657A1 LSZH Low Friction Jacket

Intertion Loss : ≤0.3dB

Return Loss : ≥60dB (APC)

Fiber Type : G657A1/G657A2

Cable Diameter : 5.1*2.0mm

Connector Type : SC/APC

Jacket Material : LSZH

Color : Grey or Customized

Wavelength : 1310nm, 1550nm

Length : 40M , 80M or Customized

Operation Temperature : -40℃~80℃

Fiber Diameter : 9/125

Fiber Brand : YOFC, OFS, Corning,Draka

Contact Now

Optitap SC/APC 1Core FTTH Self-Support Drop Cable Fiber Optic Pigtail 40M SM G657A1 LSZH Low Friction Jacket

A FastConnect drop cable adopts an anti-vibration design. It allows plug and play (no splicing), helps customers deploy it fast, and reduces time. In addition, it ensures high network reliability and durability.

  • Fiber Optic Attributes
  • 1. Mode field diameter:8.6um±0.4um at 1310nm
  • Cladding diameter:125.0um±0.7um
  • Coating diameter:245um±10um
  • Coating-cladding concentricity error:≤12.5um
  • Cut-off wavelength:≤1260nm
  • Attenuation coefficient:1310≤0.4dB 1550≤0.3dB

Fiber Optic Pigtail Specifications

  • FTTH Cable information
  • Number of fiber:1 core
  • Fiber type:G657A1
  • Strength member material: Steel wire;
  • Diameter:0.5mm*2

Self support Messenger wire:

  • Material:steel wire
  • Diameter:1.2mm

Outer sheath:

  • Material:LSZH Black
  • Cable size:5.1*2.0mm

Connector Test specifications

Item specifications
Type SC/APC(1310)
Insertion Loss

≤0.3 dB + 0.36 dB/ km*L(km) @ 1310nm

≤0.3 dB + 0.25 dB/ km *L(km) @ 1550nm
Return Loss ≥60dB
Endface IEC 61300-3-35
Durability(1000Mating) 0.2dB Max.increase
Installation Temperature -10℃～+60℃
Operating Temperature -25℃~70℃
Storage Temperature -40℃~75℃
Cable pull 90N

Optical fiber performance

Tensile strength Long term(N) 300
Short term(N) 600
Crush load Long term(N) 1100
Short term(N) 2200
wavelength(nm) 1310/1550
Attenuation(dB) 0.4/0.3
Cladding diameter(um) 125±1
Cladding non-circularity ≤1.0%
Coating diameter(um) 242±7

Why choose TAKFLY--Advantages as follows:
Professional manufacturer:

  • With more than 24 years manufacturing experience in Fiber optic products;
  • More than 450 assembly workers with 3 years experienced;
  • More than 10 R&D Engineers;
  • 16 Sets Germany imported Injection Machine and 16 Production Lines;
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
  • OEM Brand is acceptable.
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.

Quality Control:

  • Spot check the raw material incoming inspection before production;
  • Fully check after every individual process finished;
  • Fully check production half done;
  • Fully check the finished products before packing;
  • Spot check before shipping;

Delivery:

  • Samples: 1-3 working days.
  • Mass Production Order: 3-7 working days.
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request.

Price: If your QTY is big, the price could be negotiated.

I have been working in this field more than 10 years, I believe, I could give you very good service and professional answers!

If you’re interested in our products or have any doubt, why not send me inquiry at once?
